Taskbar app¶

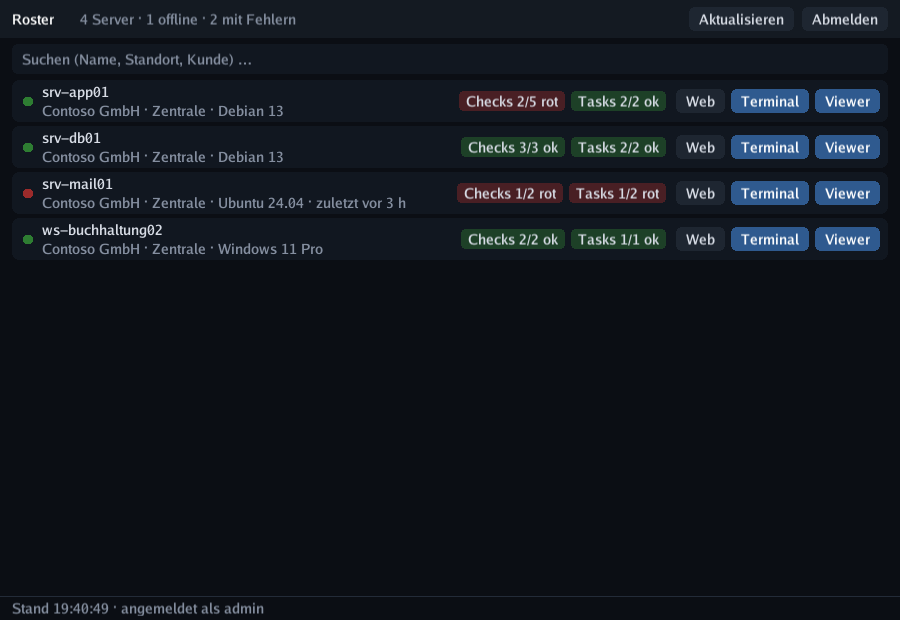

roster-tray puts your fleet one click away: a system-tray icon plus a compact window that lists every server with its check and task result, and opens a terminal or the remote-control viewer per row.

Taskbar app

Like the viewer, it is a cgo-free Go binary that renders with SDL3 through purego — no runtime to install, cross-builds for Linux/Windows/macOS without a toolchain.

What it shows¶

Status dot per device — online, offline, or unmanaged.
Checks badge — green Checks 4/4 ok, red Checks 1/4 rot as soon as one fails.
Tasks badge — same idea, based on the last run of every task.
Company / site / OS, and how long an offline device has been quiet.
Temperature badge — the hottest CPU in neutral grey; if any sensor is in its warning or critical range, that sensor instead, in amber or red (e.g. NVMe 86 °C). A red fan badge appears only when a fan stops, raises an alarm or runs too slow.
The tray icon itself turns red when anything fails and amber when a device drops offline, with a summary in the tooltip — so a glance at the taskbar is enough.

Proxmox hosts can be expanded to show their VMs and containers with backup badge and start/stop buttons — see Proxmox VE.

Type anywhere to filter by name, site or company (and VMID / guest name); F5 (or the tray menu) refreshes, and the list polls on its own every 30 s (refresh_sec).

Terminal and viewer buttons¶

Button	What happens
Terminal	Opens your normal terminal emulator (kitty, foot, alacritty, GNOME Terminal, Konsole, Windows Terminal …) running `roster-tray --term <device>`, which pipes stdin/stdout through the same on-demand terminal tunnel the web UI uses. You keep scrollback, copy & paste and colours — the app ships no terminal emulator of its own.
Viewer	Requests a remote-control session and launches the native `roster-viewer` with the ready-made launch code — the same path as the browser's Open in viewer button, but without the detour.
SFTP	Hands `sftp://user@host/` to your desktop's registered program (Nautilus/Dolphin mount it via GVFS/KIO), or falls back to the first installed client it finds — FileZilla, Dolphin, Nautilus, Nemo, Thunar, Krusader, Konqueror, gftp; WinSCP on Windows.
Web	Opens the device page in your browser (double-clicking the row does the same).

SFTP goes straight to the device, not through the tunnel

Terminal and Viewer are relayed by the Roster server, so they reach a device behind NAT or a firewall. SFTP does not: it is a plain SSH connection from your workstation, so the device needs an SSH server and has to be reachable from where you sit. The button only appears when Roster knows an address for the device — the first real IPv4 from the inventory (loopback, link-local and docker*/br-*/veth*/virbr* interfaces are skipped), otherwise the hostname, otherwise the public IP. Devices found by the network scan get the button too, even without an agent.

Set the login name with sftp_user; force a specific program with sftp_command, which takes the placeholders {{host}}, {{user}}, {{url}} and {{name}}:

{ "sftp_user": "root", "sftp_command": "filezilla {{url}}" }

You sign in once with username, password and (if enabled) the two-factor code. The app then creates a user API token for itself and stores it in tray.json — the session itself is dropped, so you are not thrown out after 12 hours. Sign out in the tray menu revokes the token on the server.

~/.config/roster/tray.json        # Linux/BSD (0600)
~/Library/Application Support/…   # macOS
%AppData%\roster\tray.json        # Windows

Key	Meaning
`url`, `user`, `token`	Server and stored access (written at sign-in)
`insecure`	Skip TLS verification — only for self-signed test servers
`refresh_sec`	Poll interval for the device list (default 30)
`terminal`	Force a terminal emulator instead of auto-detection
`viewer_path`	Path to `roster-viewer` if it is not next to the binary or on `PATH`
`shell`	Default shell for the remote terminal (`shell`, `bash`, `cmd`, `powershell`)
`sftp_user`	Login name for the SFTP button (empty = none)
`sftp_command`	Program for the SFTP button instead of the desktop handler; placeholders `{{host}}` `{{user}}` `{{url}}` `{{name}}`
`ui_scale`	Fixed UI scale (0 / absent = auto-detect). `Ctrl` `+` / `Ctrl` `-` change it live and save it, `Ctrl` `0` returns to auto

Application launcher¶

make install-tray puts everything where the desktop expects it — no root, no packaging:

make install-tray                        # ~/.local (binary, .desktop, icon)
make install-tray-autostart              # additionally start into the tray at login
sudo make install-tray PREFIX=/usr/local # system-wide instead
make uninstall-tray                      # remove it again

It installs:

File	Purpose
`$PREFIX/bin/roster-tray`	the binary (the `.desktop` gets this absolute path)
`$PREFIX/share/applications/de.boonkerz.roster.tray.desktop`	the launcher entry (`deploy/linux/`)
`$PREFIX/share/icons/hicolor/256x256/apps/de.boonkerz.roster.tray.png`	the icon, generated by `roster-tray --write-icon`

The app sets its application ID (de.boonkerz.roster.tray) as the Wayland app_id / X11 WM_CLASS, matching the .desktop file name and its StartupWMClass. That is what makes the panel show the right name and icon for the window instead of a generic one.

Starting it a second time from the menu does not create a second tray icon: the new process hands the request to the running one over a socket in $XDG_RUNTIME_DIR, which then brings its window to the front.

If the entry does not show up right away, the desktop is still holding a cached menu — update-desktop-database ~/.local/share/applications (the install target runs it) or a re-login refreshes it. ~/.local/share/applications must be covered by XDG_DATA_DIRS, which is the default on every desktop.

Running it¶

make tray                 # builds bin/roster-tray
bin/roster-tray           # window + tray icon
bin/roster-tray --hidden  # start into the tray only (autostart)
bin/roster-tray --selftest # check SDL3, window and tray support on this desktop

Key	Action
type anything	filter the list · `Esc` clears it, then hides to the tray
`F5` / `Ctrl` `R`	refresh now
`Ctrl` `+` / `Ctrl` `-` / `Ctrl` `0`	UI scale up / down / auto
`Ctrl` `Q`	quit

Closing the window hides it into the tray; Quit in the tray menu ends the app. Without tray support the window simply stays open, and closing it quits.

HiDPI¶

The app draws into the full pixel buffer and scales fonts and spacing by the display scale, so it stays sharp on 4K screens. On a Wayland session it asks SDL for the Wayland driver on purpose: through XWayland the x11 driver reports no scale while the compositor still hands out physical pixels — which is exactly how a 4K window ends up looking 1.75× too small. Set SDL_VIDEODRIVER yourself to override that choice.

If the scale still cannot be detected (plain X11, no Xft.dpi), zoom with Ctrl + / Ctrl - — the value is stored as ui_scale and reused on the next start; Ctrl 0 switches back to auto-detection. roster-tray --selftest prints the video driver and every scale value SDL reports, which usually explains the size in one line.

Linux desktops

The tray icon uses SDL3's SDL_Tray, which talks to the StatusNotifier/AppIndicator service of your panel (waybar, GNOME with the AppIndicator extension, KDE, XFCE …). --selftest tells you in one line whether SDL3 on this machine brings tray support and whether the menu callbacks arrive.

For autostart on Linux, drop a .desktop file into ~/.config/autostart/:

[Desktop Entry]
Type=Application
Name=Roster
Exec=/usr/local/bin/roster-tray --hidden
